●Rechargeable Li-ion battery, can be charged independently, the power is displayed in real time, and the working time is more than 4 hours
●The high-definition video recording system and other electronic mirrors adopt 1,000,000 pixels high-definition camera module
●Support software functions such as negative andvirtual identification
●The controller adopts 7-inch high-definition display. Resolution is1280*720. High precision touch screen, simple and friendly human-computer interaction interface
●HDMI high-definition video output interface can be used for external high-definition video display

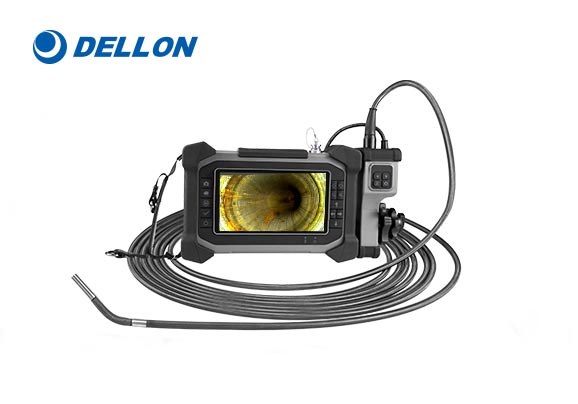

DX is the latest and cost-effective articulation videoscope which is equipped with high-definition lens and advanced software to provide high resolution images and videos. The friendly operation interfaces, advanced imaging functions and large 7 inches touch LCD screen can make inspection jobs more easy and support operation workers easy to full their jobs. It is suitable for 10mm to 200mm diameter pipes. Camera ranges from 6.4mm to 8.4mm, max cable length is 15 meters.
Product Features

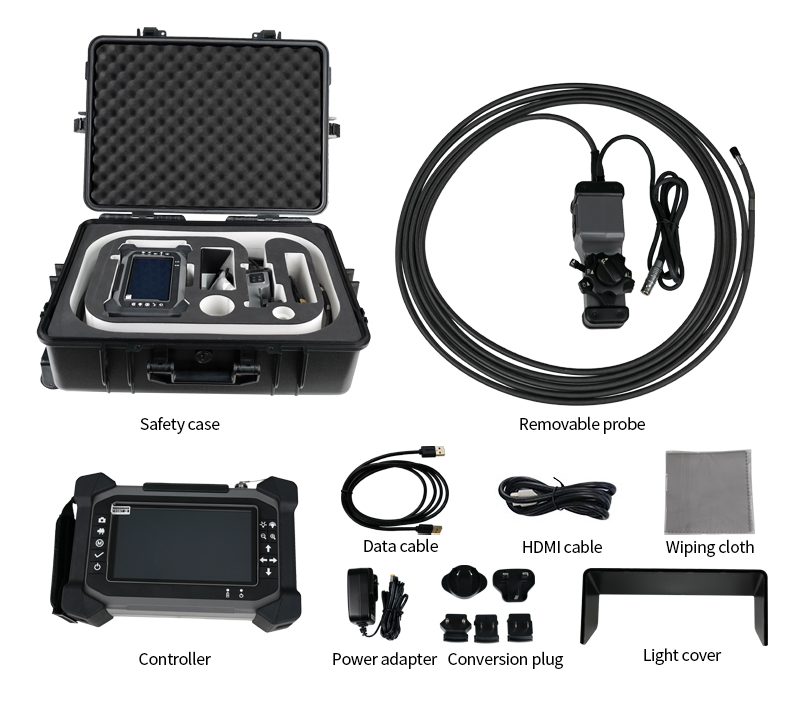

The videoscope adopts innovative design, and the controller is compatible with pipe camera. The host has a 7-inch LCD wide screen HD display, photo and video recording functions, and controls the rotation, focusing, storage, playback and other functions of the lens; 64G memory card; 14 languages are available.

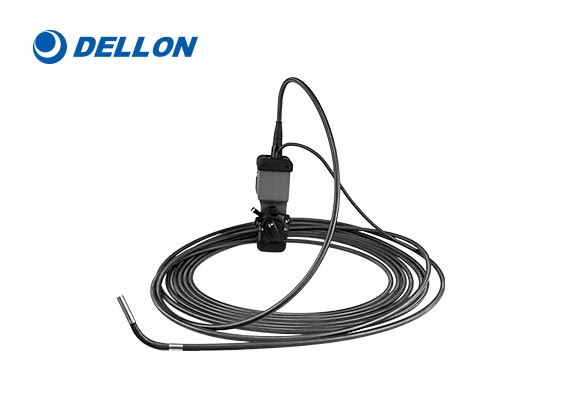

8mm articulation probe, length ranges from 8 meters, 10 meters to 15 meters, 360° articulation, suitable for detecting complicated or small industrial pipelines, interior of machines and other narrow spaces.
Controller section | |||
Model | DX series | Picture resolution | 1280*720 |
LCD monitor | 7 inch | WIFI | Optional |
Resolution | 1280*720 | Software | Negative, grid |
Frame rate | 30 fps | Language | Multiple languages |
Screen brightness | 400cd/m² | Li-ion | 11.1V 7000MAH |
Screen contrast | 800 | Charger | 12V 1A |
Touch screen | Capacitive touch screen | Charging time | 8 hours |
Video output | HMDI high resolution | Battery working time | >4 hours |
USB interface | Data transmission | Operation temperature | -10C~50C |
Memory card | 64G SD | Storage temperature | -10C~50C |
Video resolution | 1280*720 | ||
Articulation probe | |||
Inspection cable length | 6M/8M/10M/15M | Pixels | 1,000,000 |
Inspection cable materials | Tungsten braided | FOV | >120° |
Bending Angle | >90° | DOF | 25mm-infinity/8mm-80mm |
Waterproof | IP64,IP67* (Articulation degree>90°) | Materials of the camera surface | Titanium alloy |
Camera diameter | 8.4mm/6.4mm | Waterproof | IP64, IP67*(Optional) |
Image sensor | CMOS 1/4 |
