Description

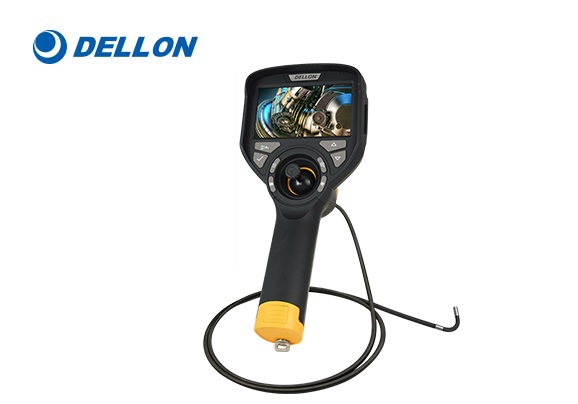

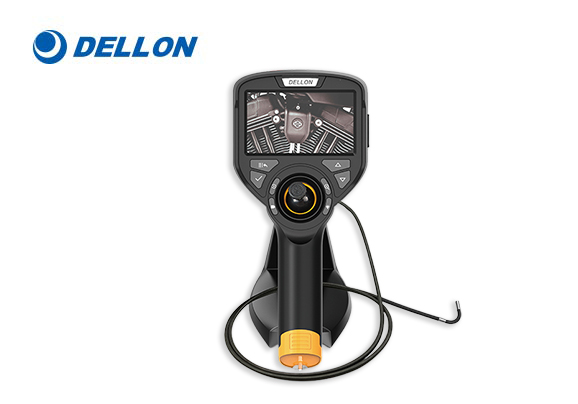

The G-Mini series industrial videoscope is a new type of non-destructive flaw detection instrument that integrates optics, electronic technology, precision machinery and microscopic camera technology. The controller and probe are designed to be separated, and probes of 3.9mm/6.2mm with different diameters and lengths can be quickly replaced to suit more working conditions.

○Optics inspection

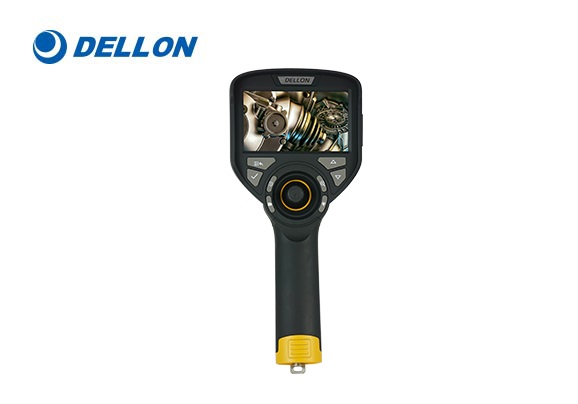

The controller is equipped with high brightness LCD display, an ultra-small camera and the video signal is processed and amplified to clearly display the detection results on the 4.3 inches LCD display. It has high definition, high reliability, high stability, excellent field detection capability.

○Precision machinery

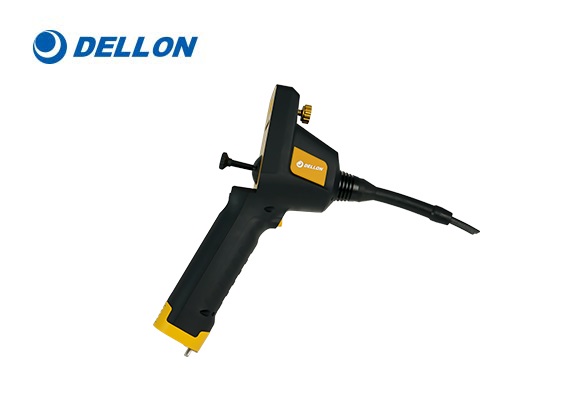

The bending part is made up of machinery parts, manual operation, 360°all-way articulation,at the same time it has the function of self-locking, and easy to operate with one hand.

○Applications

This product is suitable for video inspection in small space, and can visually detect foreign objects, blockages and defects inside automotive engine( cylinder, piston, valve and other carbon deposit detection) hydraulic, pneumatic parts, steel pipes, castings and containers; it can also be used for anti-terrorism, search and other small entrance peep inspection.

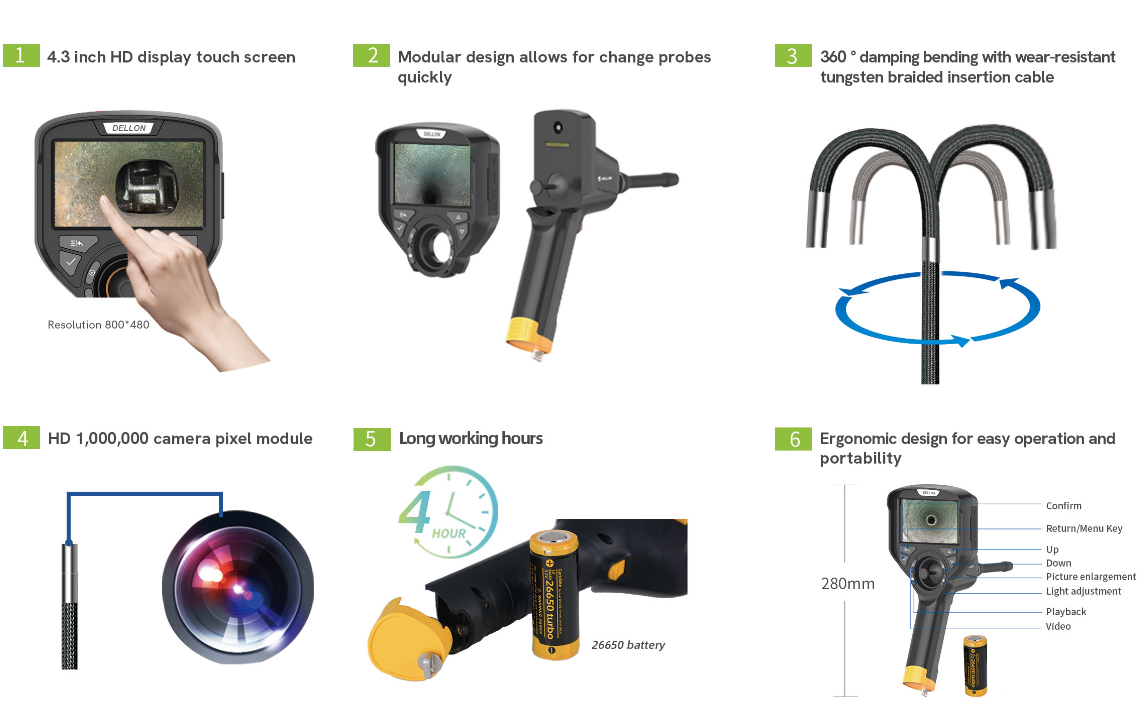

○Product features

High pixels: High resolution camera provides better picture quality; High sensitivity CMOS sensor ensures the observation in low light conditions.

Camera: Adopt high brightness LED source, 720P high pixel CMOS.

Storage display: With the function of storing data such as photography and video, equipped with 32GB SD card.

Replaceable Probe: Interchangeability design of controller and probe, the 3.9mm/ 6.2mm probe with different diameters and lengths can be quickly replaced to apply to more working conditions.

Touch screen key and function key: Touch screen and key dual operation control system, can quickly achieve recording, file access, parameter setting, etc.
