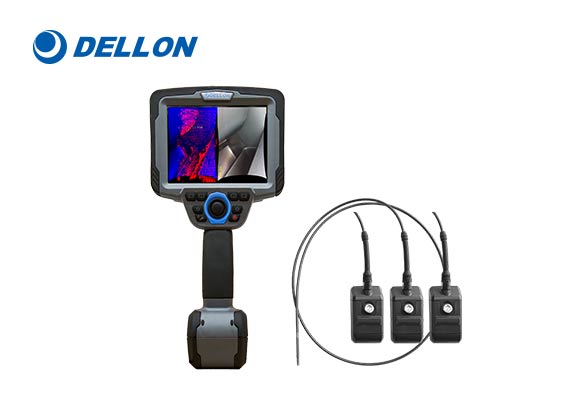

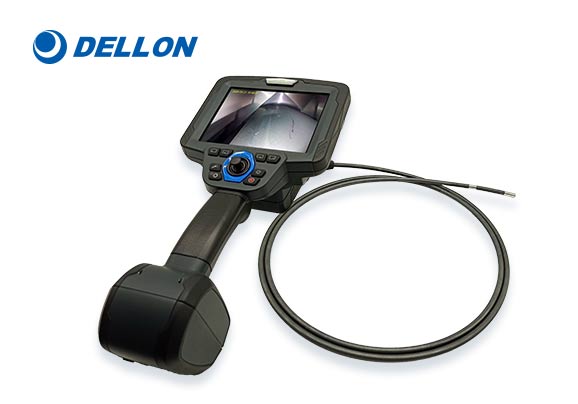

Dellon SV Pro 3D Measurement Videoscope

Product Features:

lThe binocular lens adopts megapixel high-definition solution, high-sensitivity CMOS sensor, and automatic photosensitive

lTouchable high-definition bright display screen, clear image

lModular design, easy to carry, probes replacing, and take into account more needs

lPoint-to-point, point-to-line, point-to-surface, curve measurement and other measurement methods cover all customer needs

lUsing high-definition binocular 3D modeling, the measurement is more accurate

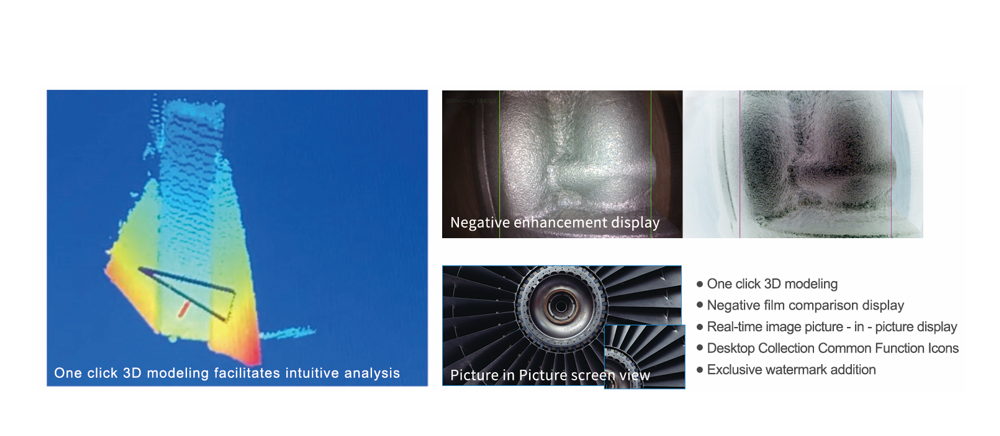

lEnhanced display of defect negative film and defect color rendering mark function for easy defect identification

Description

Dellon SV Pro 3D measurement videoscope has independent intellectual property rights, and is the first videoscope product in China to develop 3D measurement function. Integrating optics, electronics, precision machinery and binocular photogrammetry technology, it has high definition, good reliability and strong stability. Accurate detection and measurement can be carried out in places where manpower is not possible or there are potential safety hazards, and the actual needs of users can be solved to the greatest extent.

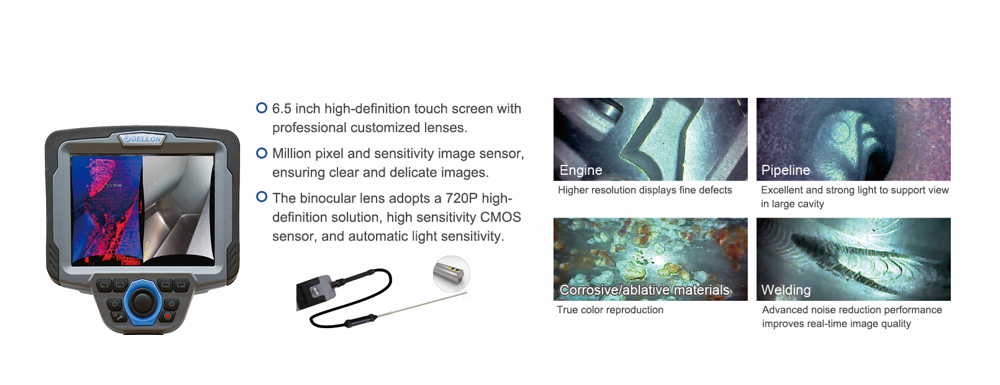

HD picture processing system

With touching screen, adopting 720P high-definition solution, high-sensitivity CMOS sensor, make it easier  and more accurate for detection and measurement.

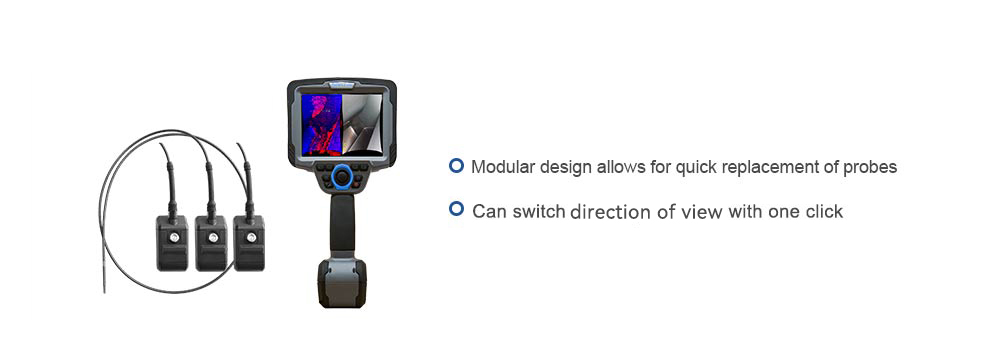

Multi-handle configuration

With replaceable probes, making it easy for the users to choose the right probe according to the detection conditions, economical and convenient.

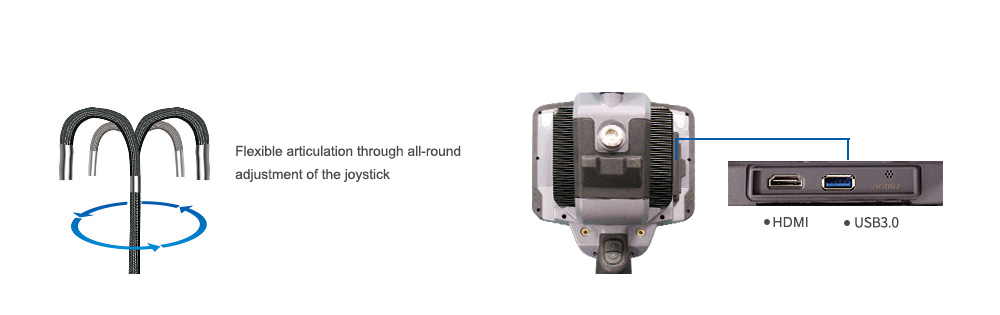

Flexible operation

360°all round joystick to control the articulation, flexible and easy to operation; HDMI output to ensure the videos or pictures with high resolution can be transferred to external monitor.

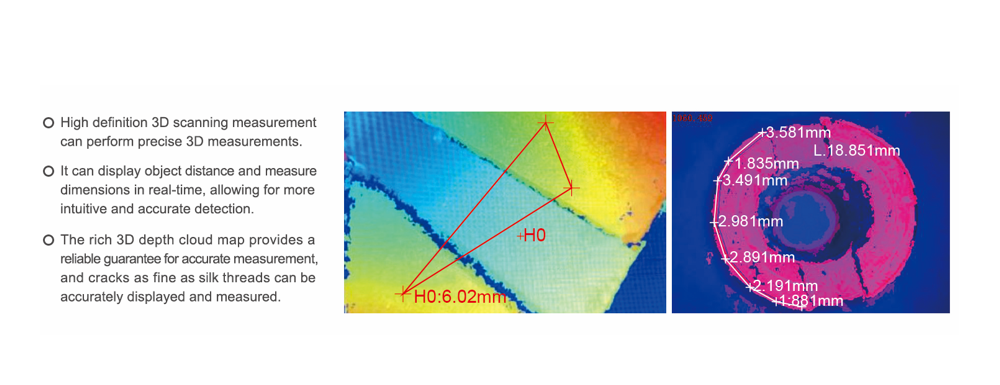

Accurate measurement function



Specification

Camera
diameter

6.0mm

LCD size

6.5 inches touch screen

Pixels

1,000,000

Controller size

351*163*122

DOF

8mm-80mm
(side view camera 5mm-50mm)

Controller interface

HDMl interface, USB3.0 interface

FOV

120°

System memory

Built-in 4GB standard flash memory

Housing
material

Titanium alloy or Stainless steel

Memory medium

128GB SSD

Cable length

2.0M/3.0M

Battery capacity and working hour

1.1V 7000mah>3 hours

Cable surface layer

Tungsten braided

Operation system

Embedded operation system

Bending angle

>120°

lmage control


Control mode

Motor driven joystick control

Temperature warning

Over temperature warning

Type of light

High light LED

Special image processing

Negative

LED Life

100,000 hours

Still image record

Resolution 1280x720 format JPEG ,BMP

Temperature
 sensing

Build-in temperature sensor

Video recording

Resolution 1280x720 format AVI ,ASF

DOV

0 or 90°

Stereo measurement

Including point-to-point,
 point-to-line, point-to-surface, curve measuremeretc., the measurement accuracy is 0.1~0.2mm, and the deviation is 1~2%

Camera lock/ Pause

Available

Data output

Support U disk export


Gallery

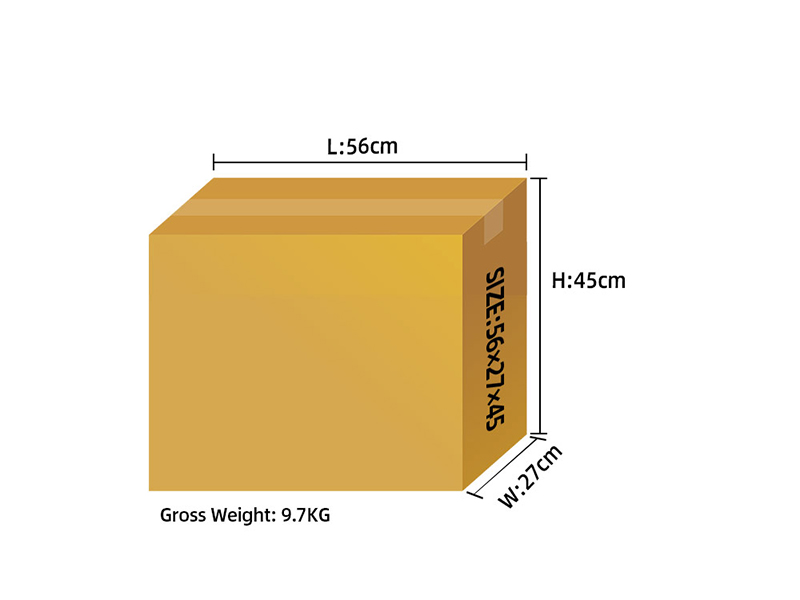

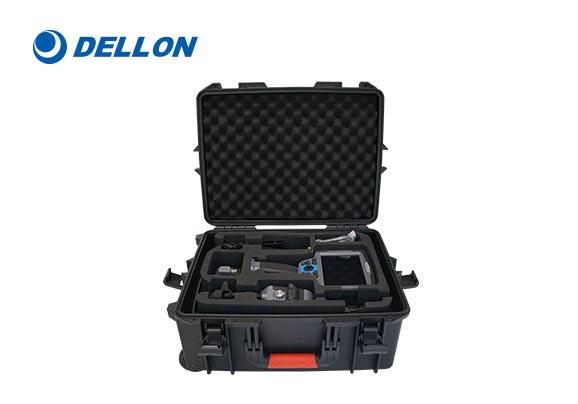

Pack

V+包装图 宽度800像素.jpg

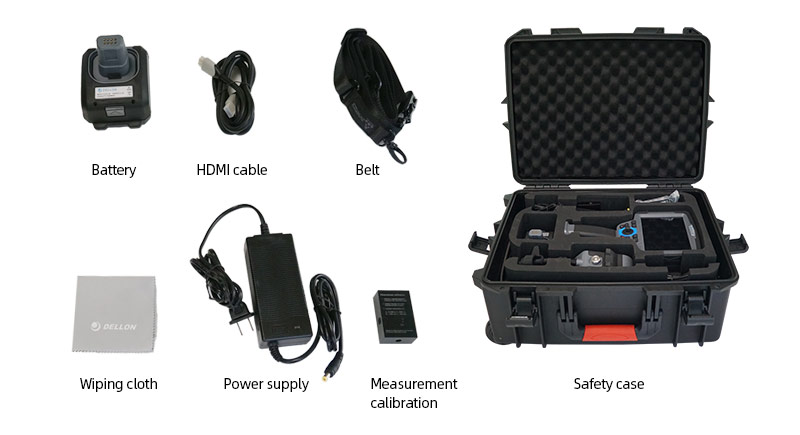

Accessory
